chapter 1: Sorting¶

Comparison sorts¶

These are all comparison sorts, and so cannot perform better than O(n log n) in the average or worst case.

1.1 Bubble Sort¶

Bubble sort, sometimes referred to as sinking sort, is a simple sorting algorithm that repeatedly steps through the list to be sorted, compares each pair of adjacent items and swaps them if they are in the wrong order. The pass through the list is repeated until no swaps are needed, which indicates that the list is sorted.

Properties

Worst case performance O(n²)
Best case performance O(n)
Average case performance O(n²)

Source: Wikipedia ¶

View the algorithm in action ¶

1.1.1 Step-by-step example¶

Take an array of numbers " 5 1 4 2 8", and sort the array from lowest number to greatest number using bubble sort. In each step, elements written in bold are being compared.

Three passes will be required.

First Pass¶

( 5 1 4 2 8 ) → ( 1 5 4 2 8 ),

Here, algorithm compares the first two elements, and swaps since 5 > 1.

( 1 5 4 2 8 ) → ( 1 4 5 2 8 ), Swap since 5 > 4

( 1 4 5 2 8 ) → ( 1 4 2 5 8 ), Swap since 5 > 2

( 1 4 2 5 8 ) → ( 1 4 2 5 8 ),: Now, since these elements are already in order (8 > 5), algorithm does not swap them.

Second Pass¶

( 1 4 2 5 8 ) → ( 1 4 2 5 8 )

( 1 4 2 5 8 ) → ( 1 2 4 5 8 ), Swap since 4 > 2

( 1 2 4 5 8 ) → ( 1 2 4 5 8 )

Now, the array is already sorted, but the algorithm does not know if it is completed. The algorithm needs one whole pass without any swap to know it is sorted.

Third Pass¶

( 1 2 4 5 8 ) → ( 1 2 4 5 8 )

1.1.2 Bubble sort Animation¶

http://www.cs.armstrong.edu/liang/animation/web/BubbleSort.html

1.1.3 Python Code¶

def bubble_sort(collection):
    """Pure implementation of bubble sort algorithm in Python

    :param collection: some mutable ordered collection with heterogeneous
    comparable items inside
    :return: the same collection ordered by ascending

    Examples:
    >>> bubble_sort([0, 5, 3, 2, 2])
    [0, 2, 2, 3, 5]

    >>> bubble_sort([])
    []

    >>> bubble_sort([-2, -5, -45])
    [-45, -5, -2]

    >>> bubble_sort([-23,0,6,-4,34])
    [-23,-4,0,6,34]
    """
    length = len(collection)
    for i in range(length-1):
        swapped = False
        for j in range(length-1-i):
            if collection[j] > collection[j+1]:
                swapped = True
                collection[j], collection[j+1] = collection[j+1], collection[j]
        if not swapped: break  # Stop iteration if the collection is sorted.
    return collection


if __name__ == '__main__':
    #===========================================================================
    # try:
    #     raw_input          # Python 2
    # except NameError:
    #     raw_input = input  # Python 3
    #===========================================================================
    user_input = input('Enter numbers separated by a comma:').strip()
    unsorted = [int(item) for item in user_input.split(',')]
    print(*bubble_sort(unsorted), sep=',')

1.1.4 Bubble Sort Animation¶

import random
import pygame
from pygame.locals import *

scr_size = (width,height) = (900,600)
FPS = 20
screen = pygame.display.set_mode(scr_size)
clock = pygame.time.Clock()
black = (0,0,0)
white = (255,255,255)

pygame.display.set_caption('Bubble Sort')

def generatearray(lowerlimit,upperlimit,length):
    arr = []
    for i in range(0,length):
        arr.append(2*i)

        #arr.append(random.randrange(lowerlimit,upperlimit))

    random.shuffle(arr)
    return arr
#    arr = []
#    for i in range(0,length):
#        arr.append(random.randrange(lowerlimit,upperlimit))
#
#    return arr


class sort():
    def __init__(self,arr):
        self.arr = arr
        self.n = len(arr)
        self.i = 1
        self.image = pygame.Surface((width - width/5,height - height/5))
        self.rect = self.image.get_rect()
        self.rect.left = width/10
        self.rect.top = height/10
        self.width_per_bar = self.rect.width / self.n - 2

    def update(self):
        if self.i < self.n:
            self.image.fill(black)
            #################Sorting Algorithm here#############################
            for j in range(0,self.n - self.i):
                if self.arr[j] > self.arr[j+1]:
                    self.arr[j],self.arr[j+1] = self.arr[j+1],self.arr[j]
            self.i += 1
            ####################################################################
            l = 0
            for k in range(0,int(self.rect.width),int(self.width_per_bar + 2)):
                bar = pygame.Surface((self.width_per_bar,self.arr[l]))
                bar_rect = bar.get_rect()
                bar.fill(white)
                bar_rect.bottom = self.rect.height
                bar_rect.left = k

                self.image.blit(bar,bar_rect)
                l += 1

        else:
            pass


    def draw(self):
        screen.blit(self.image,self.rect)


def main():
    arr = generatearray(1,height - height/5 - 10,240)
    bubble_sort = sort(arr)
    while True:
        for event in pygame.event.get():
            if event.type == pygame.QUIT:
                quit()
            if event.type == pygame.KEYDOWN:
                pass
            if event.type == pygame.KEYUP:
                pass
        bubble_sort.update()
        screen.fill(black)
        print(bubble_sort.arr)
        bubble_sort.draw()
        pygame.display.update()
        clock.tick(FPS)

main()

1.2 Selection Sort¶

Selection sort is an algorithm that divides the input list into two parts: the sublist of items already sorted, which is built up from left to right at the front (left) of the list, and the sublist of items remaining to be sorted that occupy the rest of the list. Initially, the sorted sublist is empty and the unsorted sublist is the entire input list. The algorithm proceeds by finding the smallest (or largest, depending on sorting order) element in the unsorted sublist, exchanging (swapping) it with the leftmost unsorted element (putting it in sorted order), and moving the sublist boundaries one element to the right.

Properties

Worst case performance O(n²)
Best case performance O(n²)
Average case performance O(n²)

Source: Wikipedia ¶

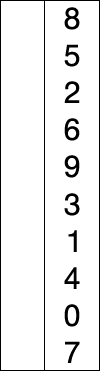

View the algorithm in action ¶

1.2.1 Selection sort Animation¶

http://www.cs.armstrong.edu/liang/animation/web/SelectionSort.html

1.2.2 Python Code¶

This is a pure python implementation of the selection sort algorithm

For doctests run following command:
python -m doctest -v selection_sort.py
or
python3 -m doctest -v selection_sort.py

For manual testing run:
python selection_sort.py

from __future__ import print_function


def selection_sort(collection):
    """Pure implementation of the selection sort algorithm in Python
    :param collection: some mutable ordered collection with heterogeneous
    comparable items inside
    :return: the same collection ordered by ascending


    Examples:
    >>> selection_sort([0, 5, 3, 2, 2])
    [0, 2, 2, 3, 5]

    >>> selection_sort([])
    []

    >>> selection_sort([-2, -5, -45])
    [-45, -5, -2]
    """

    length = len(collection)
    for i in range(length - 1):
        least = i
        for k in range(i + 1, length):
            if collection[k] < collection[least]:
                least = k
        collection[least], collection[i] = (
            collection[i], collection[least]
        )
    return collection


if __name__ == '__main__':
    #===========================================================================
    # try:
    #     raw_input          # Python 2
    # except NameError:
    #     raw_input = input  # Python 3
    #===========================================================================

    user_input = input('Enter numbers separated by a comma:\n').strip()
    unsorted = [int(item) for item in user_input.split(',')]
    print(selection_sort(unsorted))

1.2.3 Selection Sort Animation¶

import random
import pygame
from pygame.locals import *

scr_size = (width,height) = (900,600)
FPS = 20
screen = pygame.display.set_mode(scr_size)
clock = pygame.time.Clock()
black = (0,0,0)
white = (255,255,255)

pygame.display.set_caption('Selection Sort')

def generatearray(lowerlimit,upperlimit,length):
    arr = []
    for i in range(0,length):
        arr.append(2*i)

        #arr.append(random.randrange(lowerlimit,upperlimit))

    random.shuffle(arr)
    return arr
#    arr = []
#    for i in range(0,length):
#        arr.append(random.randrange(lowerlimit,upperlimit))
#
#    return arr


class sort():
    def __init__(self,arr):
        self.arr = arr
        self.n = len(arr)
        self.i = 0
        self.image = pygame.Surface((width - width/5,height - height/5))
        self.rect = self.image.get_rect()
        self.rect.left = width/10
        self.rect.top = height/10
        self.width_per_bar = self.rect.width / self.n - 2

    def update(self):
        if self.i < self.n:
            self.image.fill(black)
            #################Sorting Algorithm here#############################
            small_index = self.i
            for j in range(self.i,self.n):
                if self.arr[j] < self.arr[small_index]:
                    small_index = j
            self.arr[small_index],self.arr[self.i] = self.arr[self.i],self.arr[small_index]
            self.i += 1
            ####################################################################
            l = 0
            for k in range(0,int(self.rect.width),int(self.width_per_bar + 2)):
                bar = pygame.Surface((self.width_per_bar,self.arr[l]))
                bar_rect = bar.get_rect()
                bar.fill(white)
                bar_rect.bottom = self.rect.height
                bar_rect.left = k

                self.image.blit(bar,bar_rect)
                l += 1

        else:
            pass


    def draw(self):
        screen.blit(self.image,self.rect)


def main():
    arr = generatearray(1,height - height/5 - 10,240)
    selection_sort = sort(arr)
    while True:
        for event in pygame.event.get():
            if event.type == pygame.QUIT:
                quit()
            if event.type == pygame.KEYDOWN:
                pass
            if event.type == pygame.KEYUP:
                pass
        selection_sort.update()
        screen.fill(black)
        print(selection_sort.arr)
        selection_sort.draw()
        pygame.display.update()
        clock.tick(FPS)

main()

1.3 Insertion Sort¶

Insertion sort is a simple sorting algorithm that builds the final sorted array (or list) one item at a time. It is much less efficient on large lists than more advanced algorithms such as quicksort, heapsort, or merge sort.

Properties

Worst case performance O(n²)
Best case performance O(n)
Average case performance O(n²)

Source: Wikipedia ¶

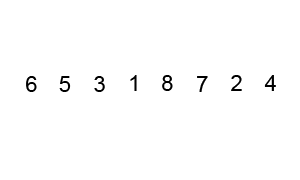

View the algorithm in action ¶

1.3.1 Inertion sort Animation¶

http://www.cs.armstrong.edu/liang/animation/web/SelectionSort.html

1.3.2 Python Code¶

def insertion_sort(collection):
    """Pure implementation of the insertion sort algorithm in Python

    :param collection: some mutable ordered collection with heterogeneous
    comparable items inside
    :return: the same collection ordered by ascending

    Examples:
    >>> insertion_sort([0, 5, 3, 2, 2])
    [0, 2, 2, 3, 5]

    >>> insertion_sort([])
    []

    >>> insertion_sort([-2, -5, -45])
    [-45, -5, -2]
    """
    for index in range(1, len(collection)):
        while index > 0 and collection[index - 1] > collection[index]:
            collection[index], collection[index - 1] = collection[index - 1], collection[index]
            index -= 1

    return collection


if __name__ == '__main__':
    #===========================================================================
    # try:
    #     raw_input          # Python 2
    # except NameError:
    #     raw_input = input  # Python 3
    #===========================================================================
    user_input = input('Enter numbers separated by a comma:\n').strip()
    unsorted = [int(item) for item in user_input.split(',')]
    print(insertion_sort(unsorted))

1.3.3 Inertion Sort Animation¶

import random
import pygame
from pygame.locals import *

scr_size = (width,height) = (900,600)
FPS = 20
screen = pygame.display.set_mode(scr_size)
clock = pygame.time.Clock()
black = (0,0,0)
white = (255,255,255)

pygame.display.set_caption('Insertion Sort')

def generatearray(lowerlimit,upperlimit,length):
    arr = []
    for i in range(0,length):
        arr.append(2*i)

        #arr.append(random.randrange(lowerlimit,upperlimit))

    random.shuffle(arr)
    return arr
#    arr = []
#    for i in range(0,length):
#        arr.append(random.randrange(lowerlimit,upperlimit))
#
#    return arr


class sort():
    def __init__(self,arr):
        self.arr = arr
        self.n = len(arr)
        self.i = 2
        self.image = pygame.Surface((width - width/5,height - height/5))
        self.rect = self.image.get_rect()
        self.rect.left = width/10
        self.rect.top = height/10
        self.width_per_bar = self.rect.width / self.n - 2

    def update(self):
        if self.i < self.n:
            self.image.fill(black)
            #################Sorting Algorithm here#############################
            for j in range(self.i,0,-1):
                if self.arr[j] < self.arr[j-1]:
                    self.arr[j],self.arr[j - 1] = self.arr[j - 1],self.arr[j]
            self.i += 1
            ####################################################################
            l = 0
            for k in range(0,int(self.rect.width),int(self.width_per_bar + 2)):
                bar = pygame.Surface((self.width_per_bar,self.arr[l]))
                bar_rect = bar.get_rect()
                bar.fill(white)
                bar_rect.bottom = self.rect.height
                bar_rect.left = k

                self.image.blit(bar,bar_rect)
                l += 1

        else:
            pass


    def draw(self):
        screen.blit(self.image,self.rect)


def main():
    arr = generatearray(1,height - height/5 - 10,240)
    insertion_sort = sort(arr)
    while True:
        for event in pygame.event.get():
            if event.type == pygame.QUIT:
                quit()
            if event.type == pygame.KEYDOWN:
                pass
            if event.type == pygame.KEYUP:
                pass
        insertion_sort.update()
        screen.fill(black)
        print(insertion_sort.arr)
        insertion_sort.draw()
        pygame.display.update()
        clock.tick(FPS)

main()

1.4 Merge Sort¶

Merge sort (also commonly spelled mergesort) is an efficient, general-purpose, comparison-based sorting algorithm. Most implementations produce a stable sort, which means that the implementation preserves the input order of equal elements in the sorted output. Mergesort is a divide and conquer algorithm that was invented by John von Neumann in 1945.

Properties

Worst case performance O(n log n)
Best case performance O(n log n)
Average case performance O(n log n)

Source: Wikipedia ¶

View the algorithm in action ¶

1.4.1 Merge sort Animation¶

https://yongdanielliang.github.io/animation/web/MergeSortOverview.html

1.4.2 Python Code¶

def merge_sort(collection):
    """Pure implementation of the merge sort algorithm in Python

    :param collection: some mutable ordered collection with heterogeneous
    comparable items inside
    :return: the same collection ordered by ascending

    Examples:
    >>> merge_sort([0, 5, 3, 2, 2])
    [0, 2, 2, 3, 5]

    >>> merge_sort([])
    []

    >>> merge_sort([-2, -5, -45])
    [-45, -5, -2]
    """
    length = len(collection)
    if length > 1:
        midpoint = length // 2
        left_half = merge_sort(collection[:midpoint])
        right_half = merge_sort(collection[midpoint:])
        i = 0
        j = 0
        k = 0
        left_length = len(left_half)
        right_length = len(right_half)
        while i < left_length and j < right_length:
            if left_half[i] < right_half[j]:
                collection[k] = left_half[i]
                i += 1
            else:
                collection[k] = right_half[j]
                j += 1
            k += 1

        while i < left_length:
            collection[k] = left_half[i]
            i += 1
            k += 1

        while j < right_length:
            collection[k] = right_half[j]
            j += 1
            k += 1

    return collection


if __name__ == '__main__':
    #===========================================================================
    # try:
    #     raw_input          # Python 2
    # except NameError:
    #     raw_input = input  # Python 3
    #===========================================================================

    user_input = input('Enter numbers separated by a comma:\n').strip()
    unsorted = [int(item) for item in user_input.split(',')]
    print(merge_sort(unsorted))


#===========================================================================

Python implementation of merge sort algorithm.
Takes an average of 0.6 microseconds to sort a list of length 1000 items.
Best Case Scenario : O(n)
Worst Case Scenario : O(n)

def merge_sort(LIST):
    start = []
    end = []
    while len(LIST) > 1:
        a = min(LIST)
        b = max(LIST)
        start.append(a)
        end.append(b)
        LIST.remove(a)
        LIST.remove(b)
    if LIST: start.append(LIST[0])
    end.reverse()
    return (start + end)

1.4.3 Merge Sort Animation¶

import random
import pygame
from pygame.locals import *

scr_size = (width,height) = (900,600)
FPS = 40
screen = pygame.display.set_mode(scr_size)
clock = pygame.time.Clock()
black = (0,0,0)
white = (255,255,255)

pygame.display.set_caption('Merge Sort')

def generatearray(lowerlimit,upperlimit,length):
    arr = []
    for i in range(0,length):
        arr.append(2*i)

        #arr.append(random.randrange(lowerlimit,upperlimit))

    random.shuffle(arr)
    return arr
#    arr = []
#    for i in range(0,length):
#        arr.append(random.randrange(lowerlimit,upperlimit))
#
#    return arr

def mergesort(arr,temparr,left,right):
    if left < right:
        mid = int((left + right)/2)
        mergesort(arr,temparr,left,mid)
        mergesort(arr,temparr,mid+1,right)
        merge(arr,temparr,left,mid + 1,right)

    else:
        pass

def merge(arr,temp,left,mid,right):
    left_end = mid - 1
    temp_pos = left
    size = right - left + 1

    while left <= left_end and mid<=right:
        if arr[left] <= arr[mid]:
            temp[temp_pos] = arr[left]
            temp_pos = temp_pos + 1
            left = left + 1
        else:
            temp[temp_pos] = arr[mid]
            temp_pos = temp_pos + 1
            mid = mid + 1

    while left<=left_end:
        temp[temp_pos] = arr[left]
        left = left + 1
        temp_pos = temp_pos + 1

    while mid <= right:
        temp[temp_pos] = arr[mid]
        mid = mid + 1
        temp_pos = temp_pos + 1

    for i in range(0,size):
        arr[right] = temp[right]
        right = right - 1
        displayarray(arr)



def displayarray(arr):
    image = pygame.Surface((width - width/5,height - height/5))
    rect = image.get_rect()
    rect.top = height/10
    rect.left =  width/10
    width_per_bar = rect.width/len(arr) - 2

    l = 0
    for k in range(0,int(rect.width),int(width_per_bar + 2)):
        bar = pygame.Surface((width_per_bar,arr[l]))
        bar_rect = bar.get_rect()
        bar.fill(white)
        bar_rect.bottom = rect.height
        bar_rect.left = k

        image.blit(bar,bar_rect)
        l += 1


    screen.fill(black)
    screen.blit(image,rect)
    pygame.display.update()
    clock.tick(FPS)

def main():
    arr = generatearray(1,height - height/5 - 10,240)
    temparr = [0]*len(arr)
    while True:
        for event in pygame.event.get():
            if event.type == pygame.QUIT:
                quit()
            if event.type == pygame.KEYDOWN:
                pass
            if event.type == pygame.KEYUP:
                pass

        if sorted(arr) != arr:
            mergesort(arr,temparr,0,len(arr) - 1)
        else:
            displayarray(arr)

main()

1.5 Quick Sort¶

Quicksort (sometimes called partition-exchange sort) is an efficient sorting algorithm, serving as a systematic method for placing the elements of an array in order.

Properties

Worst case performance O(n²)
Best case performance O(n log n) or O(n) with three-way partition
Average case performance O(n log n)

Source: Wikipedia ¶

View the algorithm in action ¶

1.5.1 Quick sort Animation¶

http://www.cs.armstrong.edu/liang/animation/web/QuickSortOverview.html

1.5.2 Python Code¶

This is a pure python implementation of the quick sort algorithm

For doctests run following command:
python -m doctest -v quick_sort.py
or
python3 -m doctest -v quick_sort.py

For manual testing run:
python quick_sort.py

from __future__ import print_function


def quick_sort(ARRAY):
    """Pure implementation of quick sort algorithm in Python

    :param collection: some mutable ordered collection with heterogeneous
    comparable items inside
    :return: the same collection ordered by ascending

    Examples:
    >>> quick_sort([0, 5, 3, 2, 2])
    [0, 2, 2, 3, 5]

    >>> quick_sort([])
    []

    >>> quick_sort([-2, -5, -45])
    [-45, -5, -2]
    """
    ARRAY_LENGTH = len(ARRAY)
    if( ARRAY_LENGTH <= 1):
        return ARRAY
    else:
        PIVOT = ARRAY[0]
        GREATER = [ element for element in ARRAY[1:] if element > PIVOT ]
        LESSER = [ element for element in ARRAY[1:] if element <= PIVOT ]
        return quick_sort(LESSER) + [PIVOT] + quick_sort(GREATER)


if __name__ == '__main__':
    #===========================================================================
    # try:
    #     raw_input          # Python 2
    # except NameError:
    #     raw_input = input  # Python 3
    #===========================================================================

    user_input = input('Enter numbers separated by a comma:\n').strip()
    unsorted = [ int(item) for item in user_input.split(',') ]
    print( quick_sort(unsorted) )
#=======================================================================
from __future__ import print_function

def quick_sort_3partition(sorting, left, right):
    if right <= left:
        return
    a = i = left
    b = right
    pivot = sorting[left]
    while i <= b:
        if sorting[i] < pivot:
            sorting[a], sorting[i] = sorting[i], sorting[a]
            a += 1
            i += 1
        elif sorting[i] > pivot:
            sorting[b], sorting[i] = sorting[i], sorting[b]
            b -= 1
        else:
            i += 1
    quick_sort_3partition(sorting, left, a - 1)
    quick_sort_3partition(sorting, b + 1, right)

if __name__ == '__main__':
    #===========================================================================
    # try:
    #     raw_input          # Python 2
    # except NameError:
    #     raw_input = input  # Python 3
    #===========================================================================

    user_input = input('Enter numbers separated by a comma:\n').strip()
    unsorted = [ int(item) for item in user_input.split(',') ]
    quick_sort_3partition(unsorted,0,len(unsorted)-1)
    print(unsorted)

1.5.3 Quick Sort Animation¶

import random
import pygame
from pygame.locals import *

scr_size = (width,height) = (900,600)
FPS = 40
screen = pygame.display.set_mode(scr_size)
clock = pygame.time.Clock()
black = (0,0,0)
white = (255,255,255)

pygame.display.set_caption('Quick Sort')

def generatearray(lowerlimit,upperlimit,length):
    arr = []
    for i in range(0,length):
        arr.append(2*i)

        #arr.append(random.randrange(lowerlimit,upperlimit))

    random.shuffle(arr)
    return arr
#    arr = []
#    for i in range(0,length):
#        arr.append(random.randrange(lowerlimit,upperlimit))
#
#    return arr

def partition(arr,low,high):
    i = low-1
    pivot = arr[high]
    for j in range(low , high):
        if   arr[j] <= pivot:
            i = i+1
            arr[i],arr[j] = arr[j],arr[i]
            displayarray(arr)
    arr[i+1],arr[high] = arr[high],arr[i+1]
    return i+1

def quicksort(arr,low,high):
    if low < high:
        pi = partition(arr,low,high)
        quicksort(arr, low, pi-1)
        quicksort(arr, pi+1, high)



def displayarray(arr):
    image = pygame.Surface((width - width/5,height - height/5))
    rect = image.get_rect()
    rect.top = height/10
    rect.left =  width/10
    width_per_bar = rect.width/len(arr) - 2

    l = 0
    for k in range(0,int(rect.width),int(width_per_bar + 2)):
        bar = pygame.Surface((width_per_bar,arr[l]))
        bar_rect = bar.get_rect()
        bar.fill(white)
        bar_rect.bottom = rect.height
        bar_rect.left = k

        image.blit(bar,bar_rect)
        l += 1


    screen.fill(black)
    screen.blit(image,rect)
    pygame.display.update()
    clock.tick(FPS)

def main():
    arr = generatearray(1,height - height/5 - 10,240)
    temparr = [0]*len(arr)
    while True:
        for event in pygame.event.get():
            if event.type == pygame.QUIT:
                quit()
            if event.type == pygame.KEYDOWN:
                pass
            if event.type == pygame.KEYUP:
                pass

        if sorted(arr) != arr:
            quicksort(arr,0,len(arr) - 1)
        else:
            displayarray(arr)

main()

1.6 Heap Sort¶

Heapsort is a comparison-based sorting algorithm. It can be thought of as an improved selection sort. It divides its input into a sorted and an unsorted region, and it iteratively shrinks the unsorted region by extracting the largest element and moving that to the sorted region.

Properties

Worst case performance O(n log n)
Best case performance O(n log n)
Average case performance O(n log n)

Source: Wikipedia ¶

View the algorithm in action ¶

1.6.1 Heap sort Animation¶

1.6.2 Python Code¶

This is a pure python implementation of the heap sort algorithm.

For doctests run following command:
python -m doctest -v heap_sort.py
or
python3 -m doctest -v heap_sort.py

For manual testing run:
python heap_sort.py


from __future__ import print_function


def heapify(unsorted, index, heap_size):
    largest = index
    left_index = 2 * index + 1
    right_index = 2 * index + 2
    if left_index < heap_size and unsorted[left_index] > unsorted[largest]:
        largest = left_index

    if right_index < heap_size and unsorted[right_index] > unsorted[largest]:
        largest = right_index

    if largest != index:
        unsorted[largest], unsorted[index] = unsorted[index], unsorted[largest]
        heapify(unsorted, largest, heap_size)


def heap_sort(unsorted):
    '''
    Pure implementation of the heap sort algorithm in Python
    :param collection: some mutable ordered collection with heterogeneous
    comparable items inside
    :return: the same collection ordered by ascending

    Examples:
    >>> heap_sort([0, 5, 3, 2, 2])
    [0, 2, 2, 3, 5]

    >>> heap_sort([])
    []

    >>> heap_sort([-2, -5, -45])
    [-45, -5, -2]
    '''
    n = len(unsorted)
    for i in range(n // 2 - 1, -1, -1):
        heapify(unsorted, i, n)
    for i in range(n - 1, 0, -1):
        unsorted[0], unsorted[i] = unsorted[i], unsorted[0]
        heapify(unsorted, 0, i)
    return unsorted

if __name__ == '__main__':
    #===========================================================================
    # try:
    #     raw_input          # Python 2
    # except NameError:
    #     raw_input = input  # Python 3
    #===========================================================================

    user_input = input('Enter numbers separated by a comma:\n').strip()
    unsorted = [int(item) for item in user_input.split(',')]
    print(heap_sort(unsorted))

1.6.3 Heap Sort Animation¶

import random
import pygame
from pygame.locals import *

scr_size = (width,height) = (900,600)
FPS = 80
screen = pygame.display.set_mode(scr_size)
clock = pygame.time.Clock()
black = (0,0,0)
white = (255,255,255)

pygame.display.set_caption('Heap Sort')

def generatearray(lowerlimit,upperlimit,length):
    arr = []
    for i in range(0,length):
        arr.append(2*i)

        #arr.append(random.randrange(lowerlimit,upperlimit))

    random.shuffle(arr)
    return arr
#    arr = []
#    for i in range(0,length):
#        arr.append(random.randrange(lowerlimit,upperlimit))
#
#    return arr

def heapify(arr, n, i):
    largest = i
    l = 2 * i + 1
    r = 2 * i + 2

    if l < n and arr[i] < arr[l]:
        largest = l

    if r < n and arr[largest] < arr[r]:
        largest = r

    if largest != i:
        arr[i],arr[largest] = arr[largest],arr[i]

        heapify(arr, n, largest)
    displayarray(arr)

def heapSort(arr):
    n = len(arr)

    for i in range(n, -1, -1):
        heapify(arr, n, i)

    for i in range(n-1, 0, -1):
        arr[i], arr[0] = arr[0], arr[i]
        heapify(arr, i, 0)

def displayarray(arr):
    image = pygame.Surface((width - width/5,height - height/5))
    rect = image.get_rect()
    rect.top = height/10
    rect.left =  width/10
    width_per_bar = rect.width/len(arr) - 2

    l = 0
    for k in range(0,int(rect.width),int(width_per_bar + 2)):
        bar = pygame.Surface((width_per_bar,arr[l]))
        bar_rect = bar.get_rect()
        bar.fill(white)
        bar_rect.bottom = rect.height
        bar_rect.left = k

        image.blit(bar,bar_rect)
        l += 1


    screen.fill(black)
    screen.blit(image,rect)
    pygame.display.update()
    clock.tick(FPS)

def main():
    arr = generatearray(1,height - height/5 - 10,240)
    temparr = [0]*len(arr)
    while True:
        for event in pygame.event.get():
            if event.type == pygame.QUIT:
                quit()
            if event.type == pygame.KEYDOWN:
                pass
            if event.type == pygame.KEYUP:
                pass

        if sorted(arr) != arr:
            heapSort(arr)
        else:
            displayarray(arr)

main()

1.7 Randix Sort¶

From Wikipedia: Radix sort is a non-comparative integer sorting algorithm that sorts data with integer keys by grouping keys by the individual digits which share the same significant position and value.

Properties

Worst case performance O(wn)
Best case performance O(wn)
Average case performance O(wn)

Source: Wikipedia ¶

1.7.1 Randix sort Animation¶

http://www.cs.armstrong.edu/liang/animation/web/RadixSort.html

1.7.2 Python Code¶

def radixsort(lst):
  RADIX = 10
  maxLength = False
  tmp , placement = -1, 1

  while not maxLength:
    maxLength = True
    # declare and initialize buckets
    buckets = [list() for _ in range( RADIX )]

    # split lst between lists
    for i in lst:
      tmp = int((i / placement) % RADIX)
      buckets[tmp].append(i)

      if maxLength and tmp > 0:
        maxLength = False

    # empty lists into lst array
    a = 0
    for b in range( RADIX ):
      buck = buckets[b]
      for i in buck:
        lst[a] = i
        a += 1

    # move to next
    placement *= RADIX

1.7.3 Randix Sort Animation¶

import random
import pygame
from pygame.locals import *

scr_size = (width,height) = (900,600)
FPS = 40
screen = pygame.display.set_mode(scr_size)
clock = pygame.time.Clock()
black = (0,0,0)
white = (255,255,255)

pygame.display.set_caption('Radix Sort')

def generatearray(lowerlimit,upperlimit,length):
    arr = []
    for i in range(0,length):
        arr.append(2*i)

        #arr.append(random.randrange(lowerlimit,upperlimit))

    random.shuffle(arr)
    return arr
#    arr = []
#    for i in range(0,length):
#        arr.append(random.randrange(lowerlimit,upperlimit))
#
#    return arr

def countingSort(arr, exp1):
    n = len(arr)
    output = [0] * (n)

    count = [0] * (10)

    for i in range(0, n):
        index = (arr[i]/exp1)
        count[ int((index)%10) ] += 1

    for i in range(1,10):
        count[i] += count[i-1]

    i = n-1
    while i>=0:
        index = (arr[i]/exp1)
        output[ count[ int((index)%10) ] - 1] = arr[i]
        count[ int((index)%10) ] -= 1
        i -= 1

    i = 0
    for i in range(0,len(arr)):
        arr[i] = output[i]
        displayarray(arr)

def radixSort(arr):

    max1 = max(arr)
    exp = 1
    while max1/exp > 0:
        countingSort(arr,exp)
        exp *= 10

def displayarray(arr):
    image = pygame.Surface((width - width/5,height - height/5))
    rect = image.get_rect()
    rect.top = height/10
    rect.left =  width/10
    width_per_bar = rect.width/len(arr) - 2

    l = 0
    for k in range(0,int(rect.width),int(width_per_bar + 2)):
        bar = pygame.Surface((width_per_bar,arr[l]))
        bar_rect = bar.get_rect()
        bar.fill(white)
        bar_rect.bottom = rect.height
        bar_rect.left = k

        image.blit(bar,bar_rect)
        l += 1


    screen.fill(black)
    screen.blit(image,rect)
    pygame.display.update()
    clock.tick(FPS)

def main():
    arr = generatearray(1,height - height/5 - 10,240)
    temparr = [0]*len(arr)
    while True:
        for event in pygame.event.get():
            if event.type == pygame.QUIT:
                quit()
            if event.type == pygame.KEYDOWN:
                pass
            if event.type == pygame.KEYUP:
                pass

        if sorted(arr) != arr:
            radixSort(arr)
        else:
            displayarray(arr)

main()

1.8 Cocktail shaker sort¶

Cocktail shaker sort, also known as bidirectional bubble sort, cocktail sort, shaker sort (which can also refer to a variant of selection sort), ripple sort, shuffle sort, or shuttle sort, is a variation of bubble sort that is both a stable sorting algorithm and a comparison sort. The algorithm differs from a bubble sort in that it sorts in both directions on each pass through the list.

Properties

Worst case performance O(n²)
Best case performance O(n)
Average case performance O(n²)

Source: Wikipedia ¶

1.8.1 Cocktail shaker sort Animation¶

1.8.2 Python Code¶

from __future__ import print_function

def cocktail_shaker_sort(unsorted):
    """
    Pure implementation of the cocktail shaker sort algorithm in Python.
    """
    for i in range(len(unsorted)-1, 0, -1):
        swapped = False

        for j in range(i, 0, -1):
            if unsorted[j] < unsorted[j-1]:
                unsorted[j], unsorted[j-1] = unsorted[j-1], unsorted[j]
                swapped = True

        for j in range(i):
            if unsorted[j] > unsorted[j+1]:
                unsorted[j], unsorted[j+1] = unsorted[j+1], unsorted[j]
                swapped = True

        if not swapped:
            return unsorted

if __name__ == '__main__':
    try:
        raw_input          # Python 2
    except NameError:
        raw_input = input  # Python 3

    user_input = raw_input('Enter numbers separated by a comma:\n').strip()
    unsorted = [int(item) for item in user_input.split(',')]
    cocktail_shaker_sort(unsorted)
    print(unsorted)

1.9 Shell sort¶

Shellsort is a generalization of insertion sort that allows the exchange of items that are far apart. The idea is to arrange the list of elements so that, starting anywhere, considering every nth element gives a sorted list. Such a list is said to be h-sorted. Equivalently, it can be thought of as h interleaved lists, each individually sorted.

Properties

Worst case performance O(nlog²n)
Best case performance O(n log n)
Average case performance depends on gap sequence

Source: Wikipedia ¶

View the algorithm in action ¶

1.9.1 Shell sort Animation¶

The step-by-step process of replacing pairs of items during the shell sorting algorithm.

1.9.2 Python Code¶

This is a pure python implementation of the shell sort algorithm

For doctests run following command:
python -m doctest -v shell_sort.py
or
python3 -m doctest -v shell_sort.py

For manual testing run:
python shell_sort.py

from __future__ import print_function


def shell_sort(collection):
    """Pure implementation of shell sort algorithm in Python
    :param collection:  Some mutable ordered collection with heterogeneous
    comparable items inside
    :return:  the same collection ordered by ascending

    >>> shell_sort([0, 5, 3, 2, 2])
    [0, 2, 2, 3, 5]

    >>> shell_sort([])
    []

    >>> shell_sort([-2, -5, -45])
    [-45, -5, -2]
    """
    # Marcin Ciura's gap sequence
    gaps = [701, 301, 132, 57, 23, 10, 4, 1]

    for gap in gaps:
        i = gap
        while i < len(collection):
            temp = collection[i]
            j = i
            while j >= gap and collection[j - gap] > temp:
                collection[j] = collection[j - gap]
                j -= gap
            collection[j] = temp
            i += 1

    return collection

if __name__ == '__main__':
    try:
        raw_input          # Python 2
    except NameError:
        raw_input = input  # Python 3

    user_input = raw_input('Enter numbers separated by a comma:\n').strip()
    unsorted = [int(item) for item in user_input.split(',')]
    print(shell_sort(unsorted))

Non Comparison sorts¶

The following table describes integer sorting algorithms and other sorting algorithms that are not comparison sorts. As such, they are not limited to Ω(n log n) . Complexities below assume n items to be sorted, with keys of size k, digit size d, and r the range of numbers to be sorted. Many of them are based on the assumption that the key size is large enough that all entries have unique key values, and hence that n ≪ 2k, where ≪ means "much less than". In the unit-cost random access machine model, algorithms with running time of {displaystyle scriptstyle ncdot {frac {k}{d}}} {displaystyle scriptstyle ncdot {frac {k}{d}}}, such as radix sort, still take time proportional to Θ(n log n), because n is limited to be not more than {displaystyle 2^{frac {k}{d}}} 2^{frac {k}{d}}, and a larger number of elements to sort would require a bigger k in order to store them in the memory.

1.10 Bucket Sort¶

Bucket sort, or bin sort, is a sorting algorithm that works by distributing the elements of an array into a number of buckets. Each bucket is then sorted individually, either using a different sorting algorithm, or by recursively applying the bucket sorting algorithm.

Properties

Worst case performance O(n²)
Best case performance O(n+k)
Average case performance O(n+k)

from __future__ import print_function
from insertion_sort import insertion_sort
import math

DEFAULT_BUCKET_SIZE = 5

def bucketSort(myList, bucketSize=DEFAULT_BUCKET_SIZE):
    if(len(myList) == 0):
        print('You don\'t have any elements in array!')

    minValue = myList[0]
    maxValue = myList[0]

    # For finding minimum and maximum values
    for i in range(0, len(myList)):
        if myList[i] < minValue:
            minValue = myList[i]
        elif myList[i] > maxValue:
            maxValue = myList[i]

    # Initialize buckets
    bucketCount = math.floor((maxValue - minValue) / bucketSize) + 1
    buckets = []
    for i in range(0, bucketCount):
        buckets.append([])

    # For putting values in buckets
    for i in range(0, len(myList)):
        buckets[math.floor((myList[i] - minValue) / bucketSize)].append(myList[i])

    # Sort buckets and place back into input array
    sortedArray = []
    for i in range(0, len(buckets)):
        insertion_sort(buckets[i])
        for j in range(0, len(buckets[i])):
            sortedArray.append(buckets[i][j])

    return sortedArray

if __name__ == '__main__':
    sortedArray = bucketSort([12, 23, 4, 5, 3, 2, 12, 81, 56, 95])
    print(sortedArray)

chapter 1: Sorting¶

Comparison sorts¶

1.1 Bubble Sort¶

Source: Wikipedia¶

View the algorithm in action¶

1.1.1 Step-by-step example¶

First Pass¶

Second Pass¶

Third Pass¶

1.1.2 Bubble sort Animation¶

1.1.3 Python Code¶

1.1.4 Bubble Sort Animation¶

1.2 Selection Sort¶

Source: Wikipedia¶

View the algorithm in action¶

1.2.1 Selection sort Animation¶

1.2.2 Python Code¶

1.2.3 Selection Sort Animation¶

1.3 Insertion Sort¶

Source: Wikipedia¶

View the algorithm in action¶

1.3.1 Inertion sort Animation¶

1.3.2 Python Code¶

1.3.3 Inertion Sort Animation¶

1.4 Merge Sort¶

Source: Wikipedia¶

View the algorithm in action¶

1.4.1 Merge sort Animation¶

1.4.2 Python Code¶

1.4.3 Merge Sort Animation¶

1.5 Quick Sort¶

Source: Wikipedia¶

View the algorithm in action¶

1.5.1 Quick sort Animation¶

1.5.2 Python Code¶

1.5.3 Quick Sort Animation¶

1.6 Heap Sort¶

Source: Wikipedia¶

View the algorithm in action¶

1.6.1 Heap sort Animation¶

1.6.2 Python Code¶

1.6.3 Heap Sort Animation¶

1.7 Randix Sort¶

Source: Wikipedia¶

1.7.1 Randix sort Animation¶

1.7.2 Python Code¶

1.7.3 Randix Sort Animation¶

1.8 Cocktail shaker sort¶

Source: Wikipedia¶

1.8.1 Cocktail shaker sort Animation¶

1.8.2 Python Code¶

1.9 Shell sort¶

Source: Wikipedia¶

View the algorithm in action¶

1.9.1 Shell sort Animation¶

1.9.2 Python Code¶

Non Comparison sorts¶

1.10 Bucket Sort¶

Source: Wikipedia ¶

View the algorithm in action ¶

Source: Wikipedia ¶

View the algorithm in action ¶

Source: Wikipedia ¶

View the algorithm in action ¶

Source: Wikipedia ¶

View the algorithm in action ¶

Source: Wikipedia ¶

View the algorithm in action ¶

Source: Wikipedia ¶

View the algorithm in action ¶

Source: Wikipedia ¶

Source: Wikipedia ¶

Source: Wikipedia ¶

View the algorithm in action ¶
